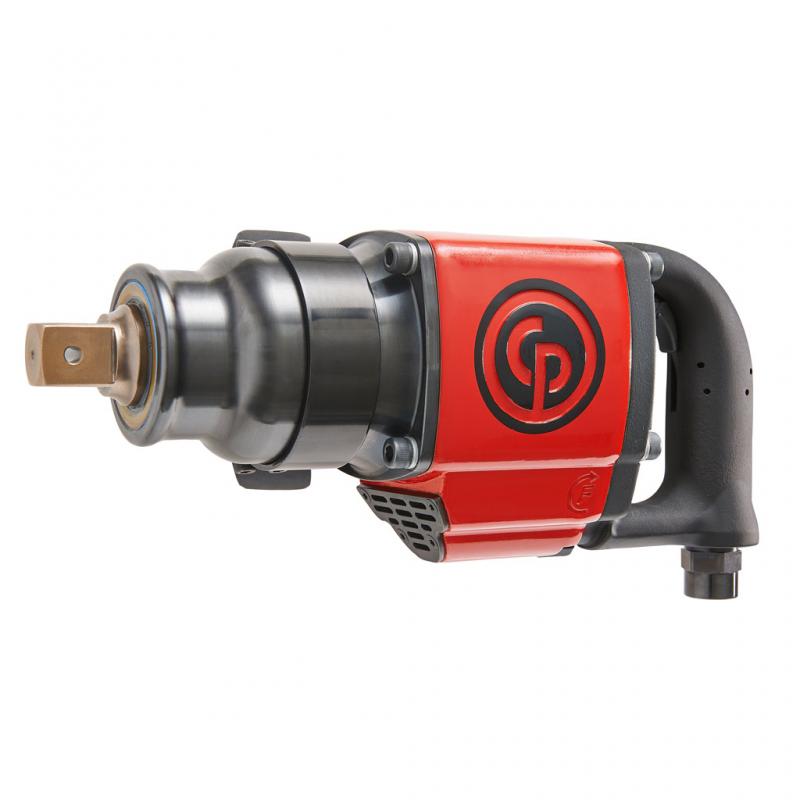

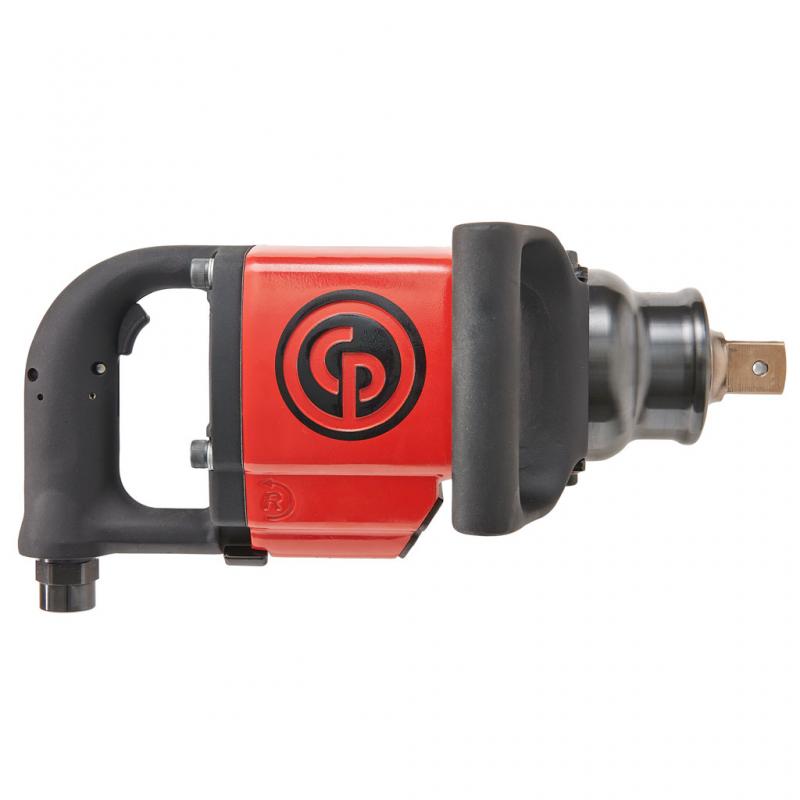

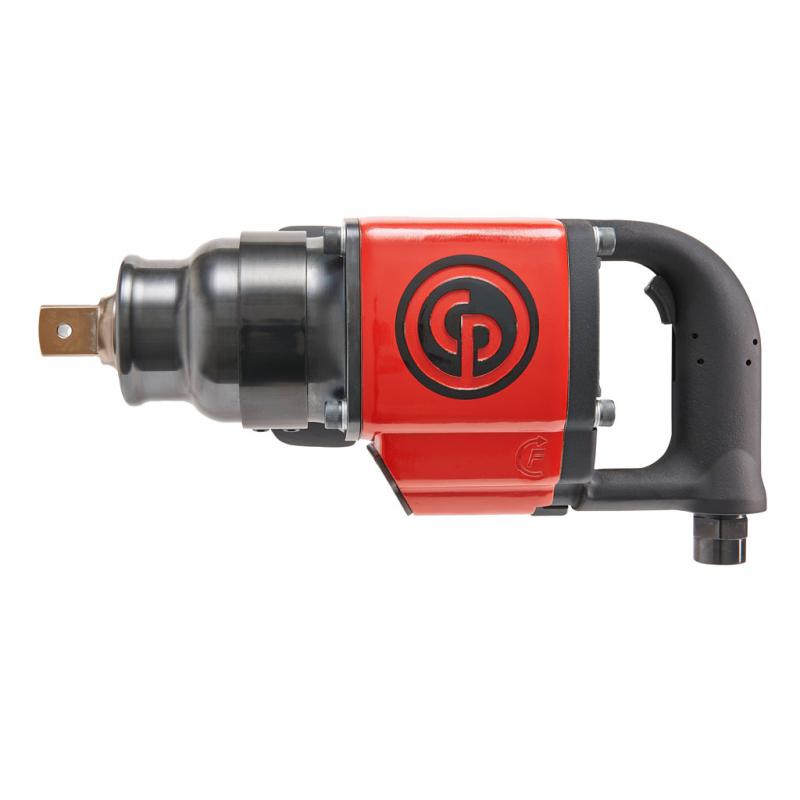

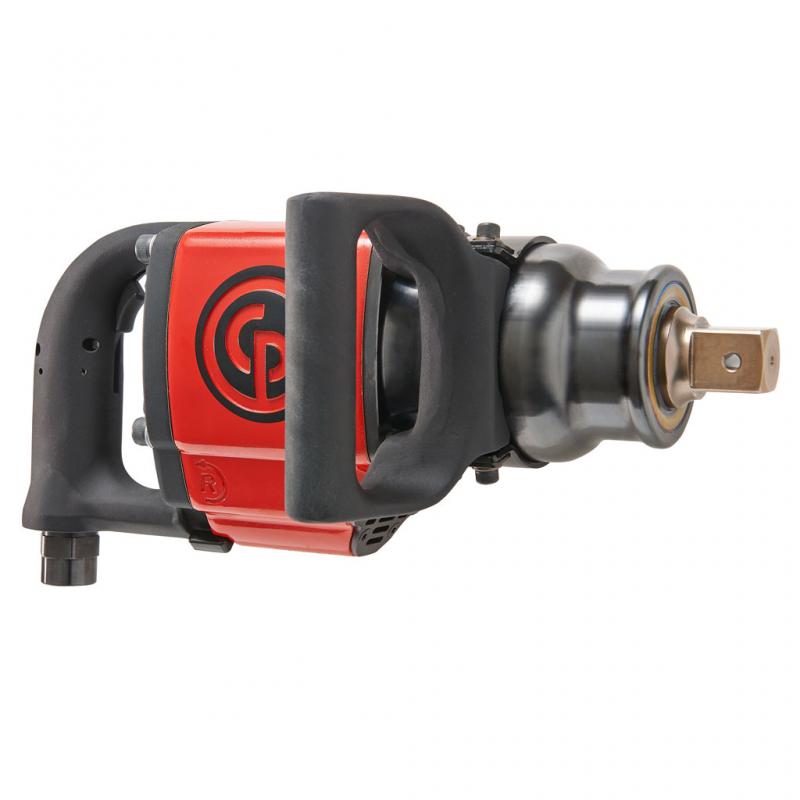

Chicago Pneumatic CP0611-D28H 1" Mutterdragare
Max-moment: 3790Nm - Vikt 10.4kg.
Lägg till en bevakning så meddelar vi dig så snart varan är i lager igen.
Chicago Pneumatic CP0611-D28H 1" Mutterdragare
Max-moment: 3790Nm - Vikt 10.4kg.
- Super Industrial 1" impact wrench
- Reliable 2-jaw clutch with the highest Blows per Minutes
- Full Teasing (inside) trigger with durable reverse
- Durable aluminum body & indestructible steel clutch housing
- Compact 3-part construction & easy maintenance
- Hole type socket retainer with O-ring
- 360° adjustable D-type side handle
| Part number | 6151590160 | |
| Model | CP0611-D28H | |
| Joint type: soft | yes | |
| Joint type: hard | yes | |
| Handle type | D-Handle | |
| Square drive | 1" | |
| Working Torque Range (fwd) | 1,220-2,440 Nm | |
| Maximum Torque (reverse) | 3790 Nm | |
| Free speed | 3500 rpm | |
| Blows per minute | 1020 | |
| Net weight | 10.4 kg | |
| Power/weight ratio | 364.4 Nm/kg | |
| Length | 360 mm | |
| Side to center | 46 mm | |
| Actual air consumption | 32 l/s | |
| Free speed air consumption | 55 l/s | |
| Air inlet thread size | 0.5 " | |
| Noise level | 99 db(A) | |
| Sound Power | 110 db(A) | |
| Vibration α (ISO-28927-2) | 18 m/s² | |
| Vibration K (ISO-28927-2) | 4.1 m/s² | |
| Socket retainer | Hole | |
| Clutch type | 2-jaw clutch | |
| Bolt size | M36 | |
| Box dimensions | 505x240x145 | |
