Chicago Pneumatic CP0611P RS 1" Mutterdragare
Max-moment: 3790Nm - Vikt 10.5kg.
Lägg till en bevakning så meddelar vi dig så snart varan är i lager igen.

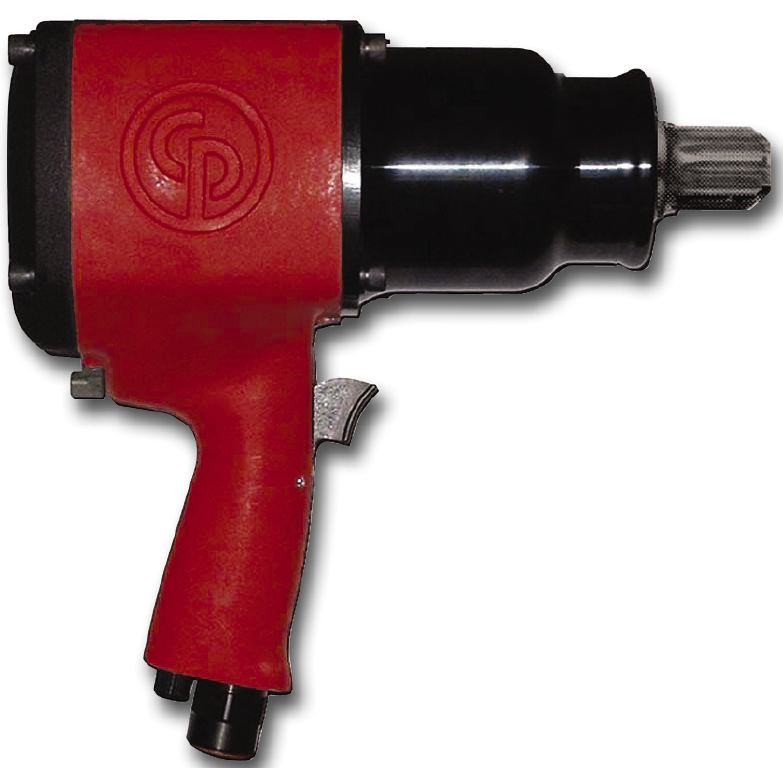

Chicago Pneumatic CP0611P RS 1" Mutterdragare
Max-moment: 3790Nm - Vikt 10.5kg.
- Super Industrial 1" impact wrench
- Reliable 2-jaw clutch
- Aluminum body & steel clutch housing
- Protective & Durable reverse
- Compact 3-part construction & easy maintenance
- Hole type socket retainer with O-ring
- 360° adjustable D-type side handle
Part number | 6151590050 | |
Model | CP0611P RS 1" | |
Joint type: soft | yes | |
Joint type: hard | yes | |
Handle type | Pistol | |
Square drive | 1" | |
Working Torque Range (fwd) | 1,220-2,440 Nm | |
Maximum Torque (reverse) | 3790 Nm | |
Free speed | 3500 rpm | |
Blows per minute | 1020 | |
Net weight | 10.5 kg | |
Power/weight ratio | 361 Nm/kg | |
Length | 272 mm | |
Side to center | 46 mm | |
Actual air consumption | 22.6 l/s | |
Air inlet thread size | 0.5 " | |
Noise level | 102 db(A) | |
Sound Power | 113 db(A) | |
Vibration (ISO-8662-7) | 12.4 m/s² | |
Vibration α (ISO-28927-2) | 16.8 m/s² | |
Vibration K (ISO-28927-2) | 4.7 m/s² | |
Socket retainer | Hole | |
Clutch type | 2-jaw clutch | |
Bolt size | M36 |
