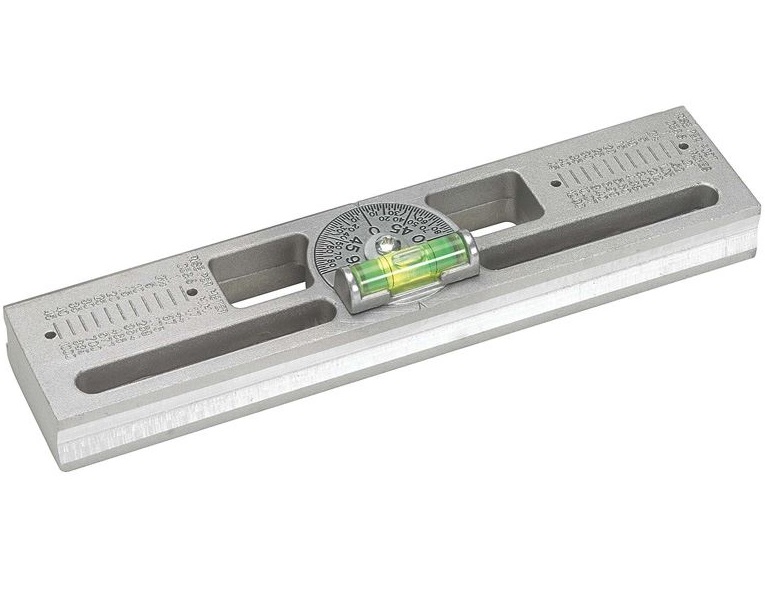

Jackson curv-o-mark universal level (J1904)

• The Curv-O-Mark Universal Level is a multi-purpose tool.

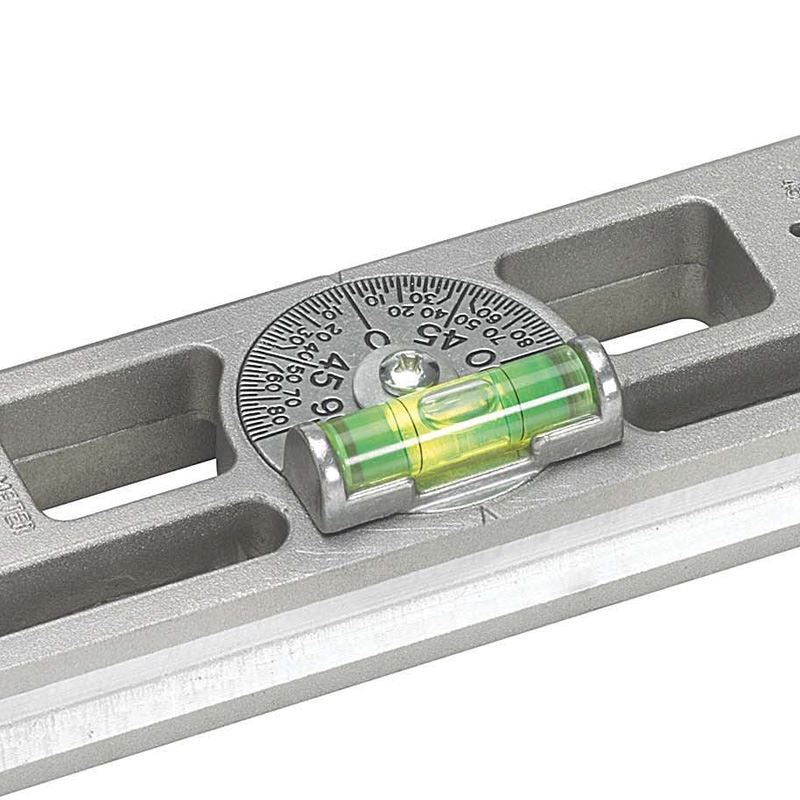

• The unit features a 360-degree adjustable protractor dial bubble (DSL) that ensures accurate leveling and permits the following additional uses:
  - Setting a predetermined pitch of a string of pipe,
  - Setting the angle of laterals to a precise degree,
  - Trueing vertical runs,
  - Two-holing flanges.
• The Level has two cast-in 25-pound magnets (exerting a 50- pound pull) to securely hold the unit in place on any steel surface, including the underside of a pipe or beam.
• This permits hands-free leveling, a welcome aid in tight spots.
• And, since the bubble is mounted on a protractor dial, the Level may be used in any position and still read accurately.
• While one face of the Level is magnetic, both faces have deep, cast-in grooves that make the Level self-centering on the contour of the pipe.
• Because the magnets are cast in, they do not interfere with the use of the Level on nonmagnetic materials, such as aluminum, copper, lumber, stone or other materials requiring leveling.

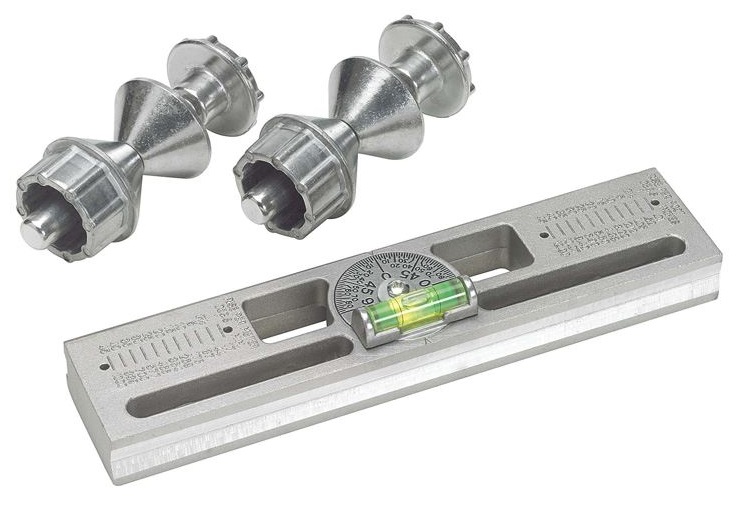

• For aligning pipe flanges (two-holing), the Level comes with a two-threaded, self-aligning conical spacer and conical nut and bolt units.
• These are designed to fit any size bolt hole spaced between 2-1/4 in. to 8-in. centers on flanges.
• This permits the orientation of flange bolt holes for any size pipe.
• Designed primarily for pipefitting applications, the Universal Level is a valuable tool for any craft required to use a level or a plumb bob.

Tekniska specifikationer
Jackson Safety Item code: J1904
Jackson Safety SKU no.: 14796
