Textutrustning för synkronförgasare (4st)

• for synchronous measurement on 2 - 4 carburettors with vacuum connection on the carburettor
• after adjusting and checking the valve leeway, the carburettors should be synchronised
• all-purpose
• perfect measurement results with mechanically faultless engines
• to be used while the engine is running
• suitable for the following cars and motorcycles

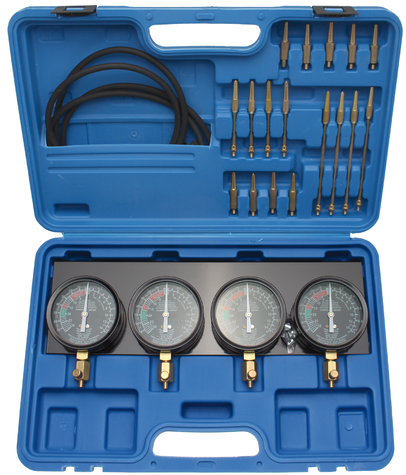

Scope of delivery

• 4 pressure gauges Ø 92.5 mm fitted on a plate
• 4 rubber hoses 7.2 x 5 x 750 mm
• 4 hose clamps with spare sealing rings
• 4 connectors 53 mm (M6 x 0.75)
• 4 connectors 60 mm (M6 x 1.00)
• 4 extensions 3.9 x 98 mm
• 4 extensions 3.9 x 170 mm
• Negative pressure measuring range: 0 TO -70 cm Hg (0 to -30 In Hg)
• Pressure measuring range: 0 to 14 PSI (0 to 1 kg/cm²)
